  1. DEKI SAFE

Installation Manual

PreviousQuick Start GuideNextHardware Installation

Last updated 1 year ago

Hardware Overview

DEKI SAFE is a local video analysis device based on the latest deep learning technology and can support and analyze up to 6 video streams connected to it (at 1080p 30fps). The features of this product include object identification and smart perimeter protection. It allows configuring various trigger rules to ring alarms and can be utilized for various purposes by inter working with external devices, API’s or systems.

Technical Specification:

General Information
-

Product Name

DEKI SAFE

Product Code

SORS/082021V1

Main Module

High Performance NVIDIA AI Module

Dimensions

130 mm x 90 mm x 55 mm

Weight

0.326kg / 326g

Working humidity

Up to 95%

Working ambient temperature

0°C to 50°C

UI

Web browser interface (desktop/mobile)

Metadata / Statistics format

JSON, CSV

Ethernet port

Gigabit RJ45

Power input

12V 3A (Power Supply included)

Output connections

API's (REST, GRCP)

Webhook

Email

Telegram

Remote relay

Event log

Video Specifications
-

Number of channels

Up to 6 Full HD 1080 at 30fps

Supported video encoding

H.264 / H.265

Video input method

RTSP

Video output method

RTSP

Supported video picture type

Color, Monochrome, Infrared

Recommended video quality

Full HD 1080 at 30fps

Detection Information
-

Pre-loaded detection models

Human detection

Vehicle detection (Car, Bus, Truck)

Bicycle detection

Motorcycle detection

Processed number of frames

Up to 100 fps per device

Max. number of objects

Up to 150 objects detected in a single frame

Max. speed of detection

40 ms

Custom Object Detection

For requests for custom detection models on your DEKI SAFE device, please contact us under office@deki.ai . We will reach out to you regarding development of specialized detection models for your business case.

CE marking acc

  • Directive 2014/53/EU of the European Parliament and of the Council of 16 April 2014 (Radio Equipment Directive).

  • Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 (RoHS Directive).

Declaration of conformity

ℹ️

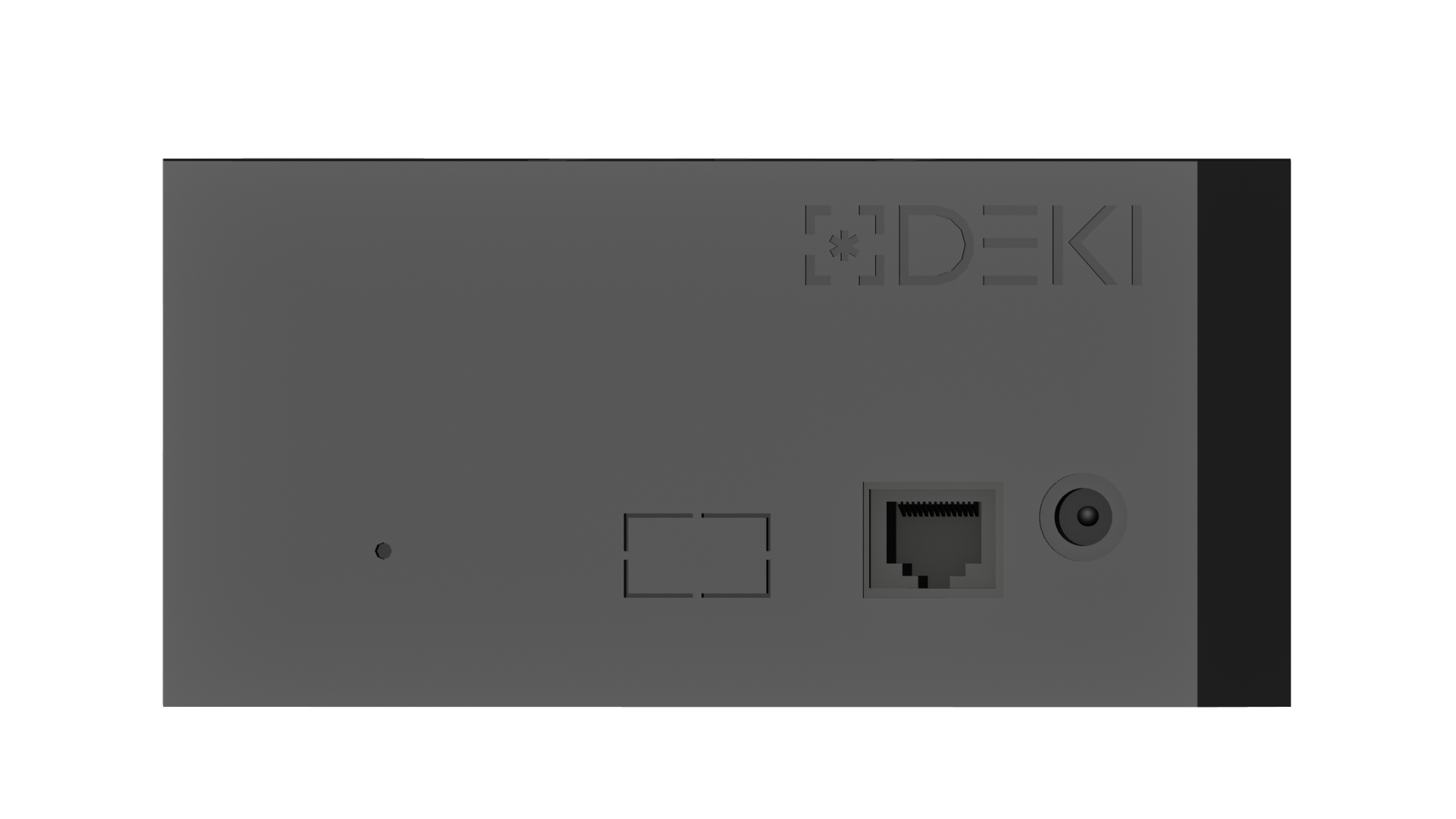

DEKI SAFE Ports
